   Bend, Optimally Mitered

Bend, Optimally Mitered



[spacer]



Netlist Form

Axxxx n1 n2 W=val COMPONENT=optimally_mitered_bend
SUBSTRATE=substrate_name

n1 and n2 are the names of the nodes attached to the mitered bend. The entry COMPONENT=optimally mitered_bend identifies the element as a mitered bend. The entry SUBSTRATE=substrate_name identifies the microstrip substrate model name selected for the design (see Selecting a Microstrip Substrate). See the Microstrip (MS) Substrate for information on this substrate type.




Mitered Bend Instance Parameters

Parameter

Description

Unit

Default

W

Width of line

Meter

0.001

Netlist Example

A23 Port1 Port2 W1=3e-4
+ COMPONENT=optimally_mitered_bend SUBSTRATE=FR4

where FR4, the selected layout technology or substrate type, has a definition such as:

.SUB FR4 MS( H=7.6200e-004 Er=4.4 TAND=0.02 TANM=0
+ MSat=0 MRem=0 HU=0.00508 MET1=1.72413793103448
+ T1=1.7145e-005 RGH=0mil)

Notes

1. [All substrates] Conditions for accurate results: Frequency £18 GHz, 2.2 £ εr £25,
W/H ³ 0.25

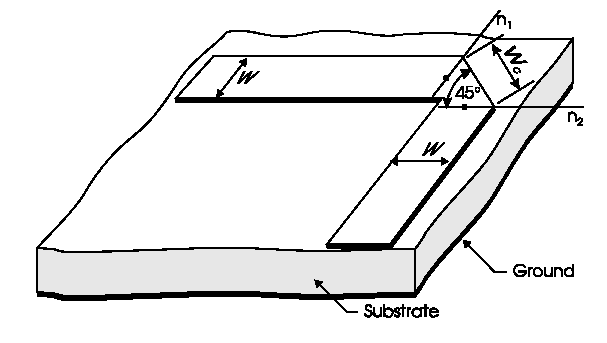

2. [All substrates] The miter is 45º and the length Wc is given by
