Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Simulator >
Nexxim Component Models >
Grounded Coplanar Waveguide Elements >
Transmission Line, Electrical Length

Transmission Line, Electrical Length

Netlist Format

An instance of a coplanar waveguide transmission line, electrical length has the following netlist syntax:

Axxx n1 n2 [W=val] [E=val] [F=val] [G=val]
COMPONENT=gcpwtrl_e SUBSTRATE=substrate_name

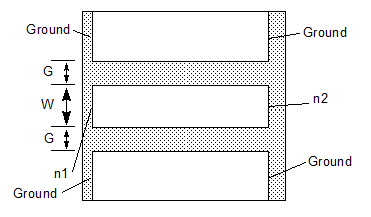

n1 and n2 are the names of the nodes attached to the bend. The entry COMPONENT=gcpwtrl_e identifies the element as a grounded coplanar waveguide transmission line, electrical length.

The SUBSTRATE=substrate_name is the grounded coplanar waveguide substrate model name selected for the design (see Selecting a Grounded Coplanar Waveguide Substrate for details).

**Grounded Coplanar Waveguide Transmission Line, Electrical Length Instance Parameters**
Parameter	Description	Units	Default
W	Width of center conductor	Meter	1.0e-3
G	Slot gap width	Meter	1.0e-3
E	Electrical length	Degree	45
F	Reference frequency for electrical length	Hertz	1e9

Netlist Example

A5 Port1 Port2 W=0.75e-3 G=1.1e-3 F=2e9 COMPONENT=gcpwtrl_e SUBSTRATE=GCPW1

where GCPW1, the selected layout technology or substrate type, has a definition such as:

.SUB GCPW1 GCPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)

Notes

1. Conformal mapping technique is used in the analysis, in which quasi-TEM behavior is assumed. Dispersion is not included in the model.
