Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Simulator >
Nexxim Component Models >
Grounded Coplanar Waveguide Elements >
Mitered Bend

Mitered Bend

Netlist Format

An instance of a grounded coplanar waveguide mitered bend has the following netlist syntax:

Axxx n1 n2 [W=val] [G=val]
COMPONENT=gcpw_mitered_bend SUBSTRATE=substrate_name

n1 and n2 are the names of the nodes attached to the bend. The entry COMPONENT=gcpw_mitered_bend identifies the element as a grounded coplanar waveguide unmitered bend.

The SUBSTRATE=substrate_name is the grounded coplanar waveguide substrate model name selected for the design (see Selecting a Grounded Coplanar Waveguide Substrate for details).

**Grounded Coplanar Waveguide Mitered Bend Instance Parameters**
Parameter	Description	Units	Default
W	Width of center conductor	Meter	1.0e-3
G	Slot gap width	Meter	1.0e-3

Netlist Example

A5 Port1 Port2 W=0.75e-3 G=1.1e-3 COMPONENT=gcpw_mitered_bend SUBSTRATE=GCPW1

where GCPW1, the selected layout technology or substrate type, has a definition such as:

.SUB GCPW1 GCPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)

Notes

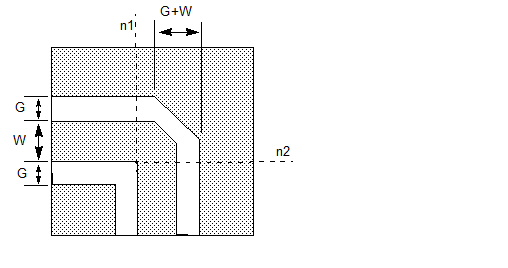

1. Reference planes coincide with the inside vertex of the corner, as shown in the figure.

2. For accurate results, the substrate definition should specify:
H > W + 2´G
0.1 < W/(W1 + 2´G) < 0.9

3. The coplanar mode is assumed to exist only. Parasitic effects due to air bridges are not considered by this model.
