Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Simulator >
Nexxim Component Models >
Grounded Coplanar Waveguide Elements >
Cross

Cross

Netlist Format

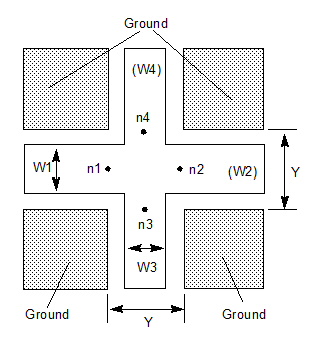

An instance of a symmetric grounded coplanar waveguide cross has the following netlist syntax:

Axxx n1 n2 n3 n4 [W1=val] [W3=val][Y=val] COMPONENT=gcpwcross SUBSTRATE=substrate_name

n1, n2, n3, and n4 are the names of the nodes attached to the cross.

The implementation of the grounded coplanar waveguide grounded cross element requires the element to be symmetric. Only widths W1 and W3 are specified, with W2=W1 and W4=W3.

The entry COMPONENT=gcpwcross identifies the element as a grounded coplanar waveguide cross element.

The SUBSTRATE=substrate_name is the grounded coplanar waveguide substrate model name selected for the design (see Selecting a Grounded Coplanar Waveguide Substrate for details).

**Grounded Coplanar Waveguide Cross Instance Parameters**
Parameter	Description	Units	Default
Y	Ground-to-ground spacing at all ports. Must be greater than both W1 and W3.	Meter	3e-3
W1	Conductor width at ports 1 and 2	Meter	1e-3
W3	Conductor width at ports 3 and 4	Meter	1e-3

Netlist Example

A23 Port1 Port2 Port3 Port4 W1=4.0e-004 W3=2.0e-4 Y=6.0e-4
+ COMPONENT=GCPWCROSS SUBSTRATE=GCPW1

where GCPW1, the selected layout technology or substrate type, has a definition such as:

.SUB GCPW1 GCPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)

Notes

1. The ground-to-ground distance Y is the same at all ports.

2. W1 = W2 and W3 = W4.

3. For accurate results, the substrate definition should specify:
2 < ER <14
H > Y
0.1 < Wn/Y <0.9, where Wn is the conductor width at any port.

4. The coplanar mode is assumed to exist only. Parasitic effects due to air bridges are not considered by this model.
