   Viewing a Monte Carlo Analysis in a Report


Viewing a Monte Carlo Analysis in a Report

After running a Monte Carlo Analysis, you can plot any calculated or derived quantity against the sequence of Monte Carlo parameter values.

1. Right-click on the Results icon in the Project tree, and select Create Standard Report >Rectangular Plot from the menus.

2. The Reports dialog opens. The Solution, Domain, and Plotting Values fields have all been filled in with the correct data.

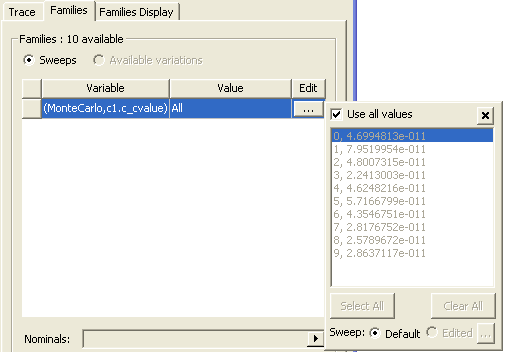

3. Click on the Families tab. Select the Monte Carlo item to display the sweep values:

4. Select the Use all values box.

5. Click New Report. The report is displayed in the window.
