Viewing Load-Pull Analysis Results

Viewing Load-Pull Analysis Results

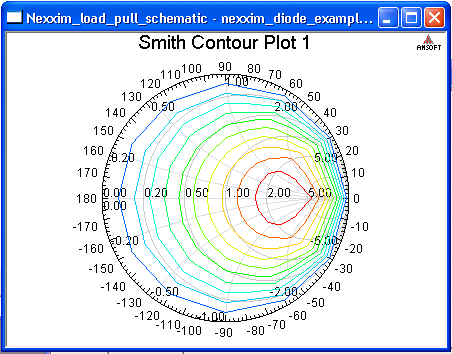

To display a Smith Contour chart of the load-pull results after a successful analysis:

1. Left-click on the Results icon in the Project tree.

2. Select Create Load Pull Report, then select Smith Contour Plot. Click OK to open the Reports dialog.

3. On the Reports dialog, select the HB analysis and select LoadPull Contour as the Domain.

4. Select Power, select the appropriate port number, and select <none>. Click New Report. A Report window opens to display a graph of the analysis results.

For details on creating and modifying reports, see Generating Reports and Postprocessing.
