LNA Circuit Schematic Configuration

LNA Circuit Schematic Configuration

In the Schematic Editor, you add the editor’s built-in Netlist I/O ports. Select the Interface Port icon from the Schematic Editor menu. Drag and place one or more ports, then connect them to the circuit at the appropriate places.

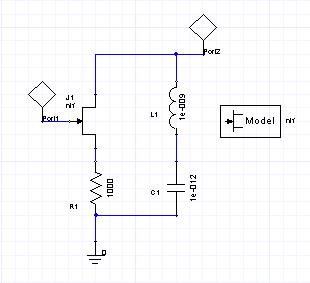

The following figure shows a simple JFET circuit configured with Schematic ports for LNA:
