Generating a Transient Eye Report

Generating a Transient Eye Report

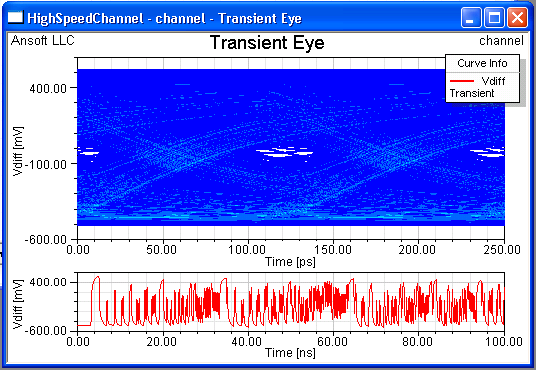

To generate an eye report after transient analysis has run to completion, left-click on the Results icon and select Create Rectangular Plot>Eye Diagram. Select your Transient analysis as the Solution, UI as the Domain, Eye as the Category, your Eye Probe as the Quantity, and <none> as the Function. Click New Report to generate the plot. Here is an example:
