Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Simulator >
Nexxim Transient Analysis >
Adding an Eye Scope for Sampled Eye Reports >
Generate Sampled Eye Report

Generate Sampled Eye Report

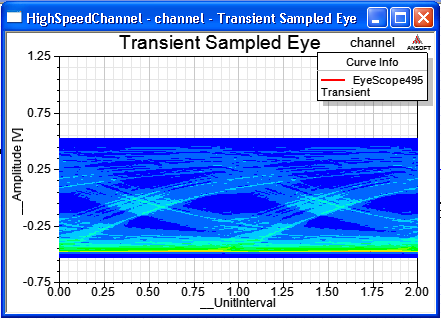

To generate the sampled or statistical eye report after transient analysis has run to completion, left-click on the Results icon and select Create Statistical Eye Report>Statistical Eye Plot. Select your Transient analysis as the Solution, UI as the Domain, Eye as the Category, your Eye Scope as the Quantity, and <none> as the Function. Click New Report to generate the plot. Here is an example:
