Generate Eye Measurement Report

To generate the eye measurement report after transient analysis has run to completion, left-click on the Results icon and select Create Standard Report>Data Table. Select your Transient analysis as the Solution, Eye Measurements as the Domain, Eye as the Category, your eye measurement (MinEyeWidth or MinEyeHeight) as the Quantity, and <none> as the Function. Click New Report to generate the plot.

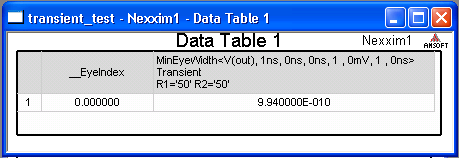

A very small eye measurement may be displayed as zero in Decimal format. On the table, click the value under the eye measurement to open its properties window, and change the Number Format to Scientific to see the value. Here is an example:
