Add Eye Scope to Schematic

Add Eye Scope to Schematic

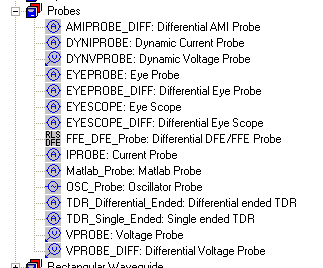

The Eye Scope may be selected from the Probes list on the Components tab:

Both single-ended and differential versions are available.

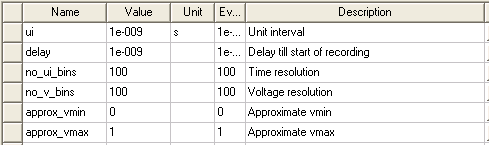

Right-click on the Eye Scope and select Edit Properties:

• Set the ui parameter to the Unit Interval (UI) of the Eye diagram.

• Set the delay parameter to if a time offset is desired.

• Set no_ui_bins to a higher or lower number to increase or decrease the time resolution.

• Set no_v_bins to a higher or lower number to increase or decrease the voltage resolution.

• Set approx_vmin to the approximate minimum voltage value.

• Set approx_vmin to the approximate maximum voltage value.
