Ansoft Designer / Ansys Designer 在线帮助文档：

Getting Started with Ansoft Designer >
EM Design >
   Work with Post Processing >
       View Tabular S Parameters

View Tabular S Parameters

Open the Solution Data dialog box:

1. In the Project Manager, right-click Sweep1, point to Results and then click Matrix Data.

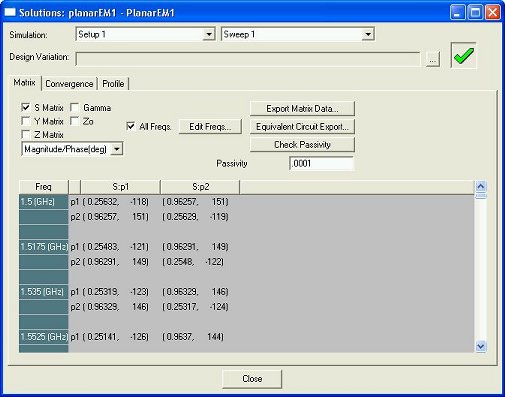

The Solution Data dialog box appears. Click the “All Freqs.” checkbox. Your results will be similar to the following:

2. Select S Matrix and then select the appropriate format (for example, Magnitude/Phase).

3. Click Export Matrix Data, and the Export Network Data Solution dialog box appears. Select the appropriate format (for example, Touchstone, .SZG or .NMF) and then click Save.

4. To export the circuit as an equivalent SPICE model, click Equivalent Circuit Export, select an appropriate file format and click Save. If the Equivalent Circuit Export command is unavailable, you need to obtain a license from your Ansoft representative. NOTE: SPICE models require solution data at DC.

5. To see runtime data pertaining to the analysis, click the Profile tab.
