Getting Started with Ansoft Designer > Set up an EM Design1. Start Designer. 2. On the Project menu, click Insert EM Design. Alternatively, you can insert an EM circuit using either of these options: • On the Project toolbar, click

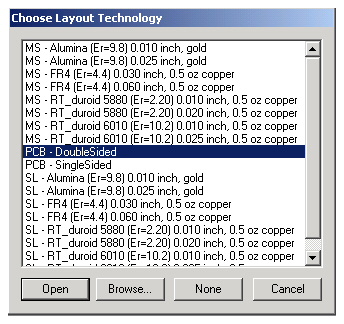

the Insert EM Design icon. • In the Project Manager window, right-click the Project icon, point to Insert, and then click Insert EM Design. 3. When the Choose Layout Technology File dialog box appears, click None.

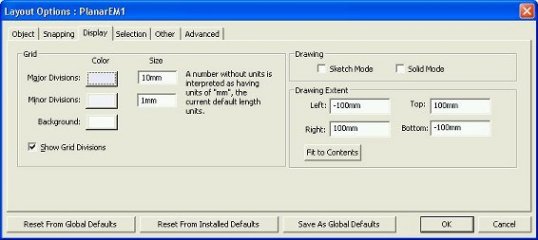

The Layout Editor window appears. • All EM designs must define a process topology (also called a stackup). • Layout technology files provides a quick way to store frequently used process topologies. For example, a designer who frequently uses a specific substrate can pre-specify the correct materials and stackups with a single click. • In this example, we will not use a layout technology file, but will define the topology or stackup manually. 4. Hide the Message Manager and Progress windows: • On the View menu, make sure that the checkboxes for Message Manager and Progress are cleared. 5. Set the default units: a. On the Tools menu, point to Options, and then click General Options. b. Select the Default Units tab. c. In the Length list, select mm, and then click OK, leaving the other settings unchanged. 6. Configure Grid Settings for the Layout Editor: a. On the Layout menu, click Grid Settings. The Layout Options dialog box opens with the Display tab showing. b. In the Grid panel, enter 10mm for Major and .1mm for Minor, making sure that the unit used for each is the millimeter (mm, the default setting).
c. In the Snapping tab, deselect Snap to grid, and select the necessary options to match the following settings:
d. Click OK to close the dialog.
