Run VerifEye and QuickEye Analyses

To set up the VerifEye analysis

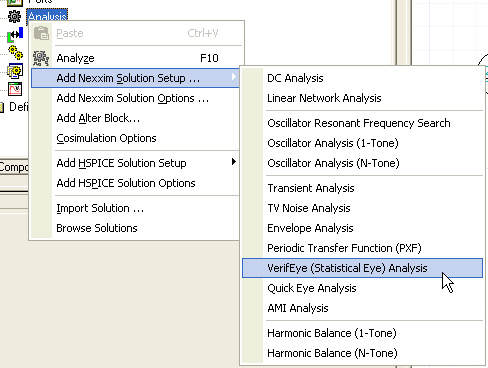

1. In the Project window, expand the Circuitn folder, right-click on the Analysis folder, and select Add Nexxim Solution Setup. Continue to expand the menu and select VerifEye (Statistical Eye) Analysis:

2. The VerifEye (Statistical Eye) Analysis setup dialog opens.

3. All the parameters should remain as shown.

4. Click OK to close the VerifEye (Statistical Eye) Analysis setup dialog.

To set up the QuickEye analysis:

1. Right-click on the Analysis folder, and select Add Nexxim Solution Setup. Continue to expand the menu and select QiuickEye Analysis.

2. The QuickEye Analysis setup dialog opens:

3. All the parameters should remain as shown.

4. Click OK to close the QuickEye Analysis setup dialog.

5. On the Designer File menu, click Save.

Run the Analyses

To run both analyses, right-click on the Analysis folder, and click Analyze from the menu. A progress window at the lower right indicates when the two analyses are being performed. When the analyses are completed, the Message Manager window at the lower left shows the name of the project, errors or warnings if any, and analysis statistics such as CPU time.

The next step is to display the results of the analyses.
