Place the Voltage and Power Probes

Next, place two voltage probes and a power probe to provide test points for the analyses.

1. In the Project Manager window Components tab, under the System Elements folder, expand the Probes icon and select VP: Voltage Probe (located at the bottom of the list).

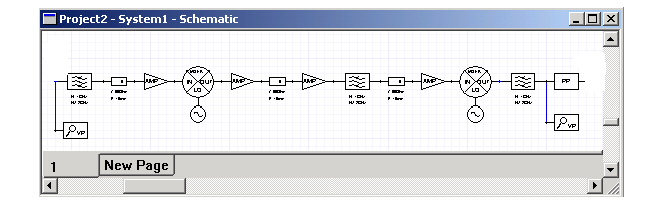

2. Place two copies of the voltage probe (input and output) as shown.

3. Click the cursor over the terminal on the leftmost voltage probe. The cursor changes to an “X” to indicate the start of wire mode. Click the cursor over the open terminal on the leftmost filter. A wire is added between the two terminals.

4. Using the same procedure, wire the right voltage probe to the terminal on the rightmost filter.

5. Select PP: Power Probe from the Probes group and insert it as shown:
