Ansoft Designer / Ansys Designer 在线帮助文档:


Getting Started with Ansoft Designer >
System Design >
   Place the Components in the Schematic >
       Place the Mixers


Place the Mixers

Next place the two mixers in the schematic.

1. In the Project Manager window Components tab, under the System Elements folder, expand the Nonlinear RF icon and select MIXER: Mixer, Full Listing:

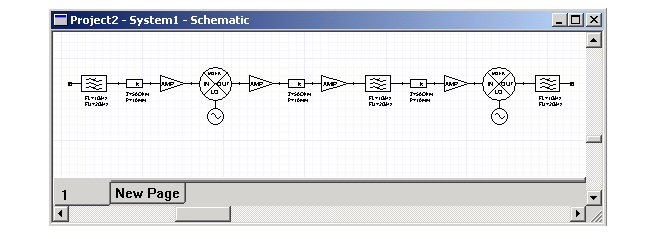

2. Now place two instances of the mixer in the Schematic Editor, as shown below:
