Ansoft Designer / Ansys Designer 在线帮助文档：

Getting Started with Ansoft Designer >
System Design >
Place the Components in the Schematic >
Place the Amplifiers

Place the Amplifiers

Next, place three amplifiers in the design. If necessary, you may zoom out to more easily place components using the current window size. Use View > Zoom Out, or hold Shift+Alt+Left-Click and drag the mouse to change the zoom setting.

1. In the Project Manager window, under the System Elements icon, expand the Nonlinear RF folder.

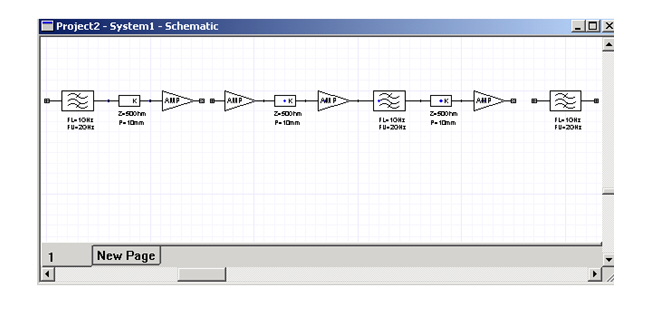

2. Select AMP: Amplifier, Full Listing, and then place four instances in the Schematic Editor:
