Frequency Animated Far Field Plots

Frequency Animated Far Field Plots

Far fields are not usually of interest when designing a filter, but the procedure is shown here for reference. To be able to plot the currents and far field, a discrete sweep must have been run, with Generate Surface Current selected in the solution setup, so that the currents are saved and are available to be plotted. As with the current animation, you can define the frequency at which you view the far field: Right-click Setup1:Sweep2:Far Field and click Frequency. Click 2.4 GHz.

Plot the far field:

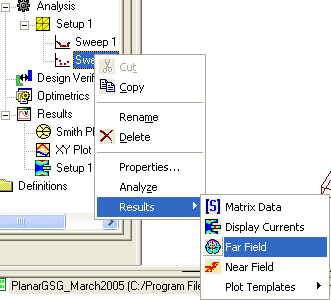

1. In the Project Manager, right-click Setup 1: Sweep2, point to Results, and then click Far Field:

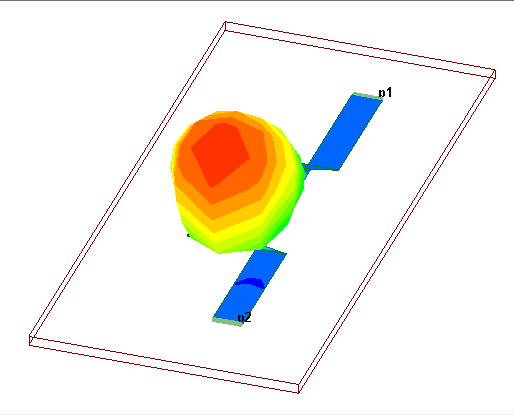

The Layout 3D window appears and the far-field pattern is displayed.

2. Right-click anywhere in the Layout3D window, point to View, and then check out the various options.

Animate the far field:

1. In the Project Manager, under Field Overlays, right-click the Setup1: Sweep2: Far Field icon, and then select Animate.

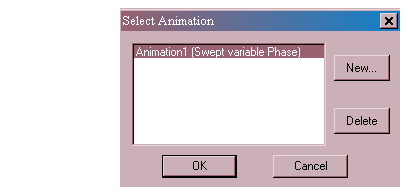

The Select Animation dialog box appears:

2. Click New because you will view an animation of a varying frequency against a fixed input phase of 0 degrees.

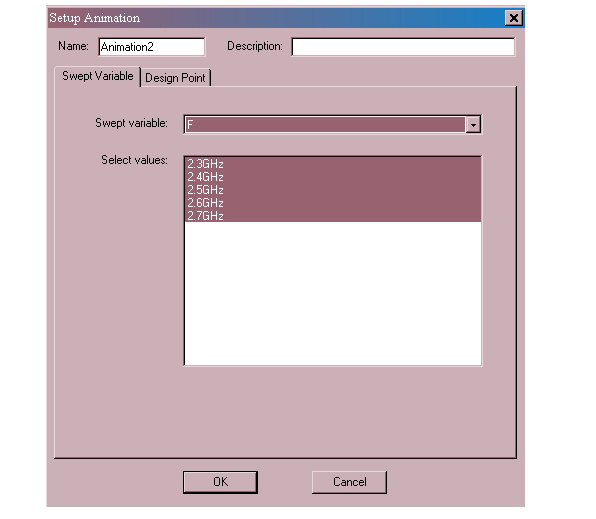

The Setup Animation window appears:

3. Accept the default name and change the swept variable to “F”.

4. Click OK and the animation begins.

5. Click Close when finished.

6. Save the project and exit Designer.
