IBIS Block Properties - General

Navigation Tree: Blocks<Block Name>PropertiesGeneral

This dialog box contains general information about the IBIS block and its associated IBIS model.

Name

The name of the block is displayed and can be modified by editing.

Vcc/Volt

Shows the given supply voltage of the chosen IBIS model.

Enable

Shows the polarity of the enable pin of the chosen IBIS model.

Simplified Layout

If this switch is selected, the supply voltages defined by the IBIS model are used for simulation. If unselected, Vcc and GND need to be connected externally. In this case the schematic block shows two additional pins.

Probe at Die

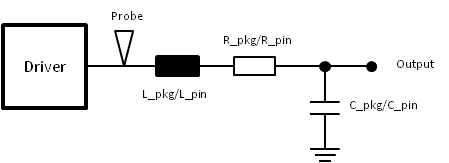

If enabled, an internal probe will be automatically created, monitoring the current and voltage "on the die" of the selected model/pin. In terms of the IBIS-model this means that a probe is defined before the package/pin parasitic elements (see picture below).

File name

Shows the currently selected IBIS file name.

Browse...

Opens a 'File Open' Dialog box, where an IBIS  file can be browsed for.

Store relative path

To consider a relative path for the connected IBIS file, mark that check box.

OK

Accepts your settings and leaves the dialog box.

Cancel

Closes this dialog box without performing any further action.

Apply

Performs your settings without leaving the dialog box.

Help

Shows this help text.

See also

IBIS block, Block, Block Overview
