Ansoft Designer / Ansys Designer 在线帮助文档:


Schematic Editor >
   N-Ports in Designer >
       Creating an N-Port Model >
           N-Port Data Symbol Tab


N-Port Data Symbol Tab

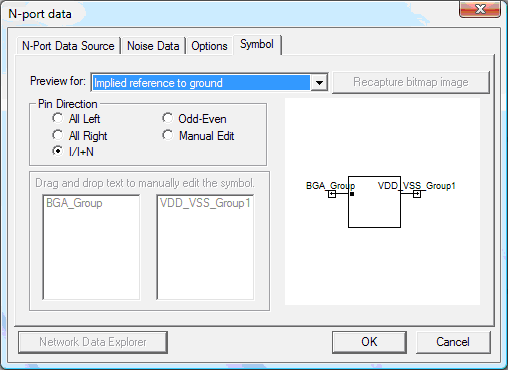

The Symbols tab is used to display symbols for the model:

The N-port data dialog reads the file you specify for port information and updates the Symbol tab display with port names.



You can use the following controls to position pins on the symbol:

• Preview for: This pulldown menu allows you to choose from the following display options:

— Implied reference to ground

— Show common reference port

— Add individual hidden reference pin per port

— Add individual reference pin per port

Note

Refer to the section “Reference Nodes on S-Parameter Elements” in the S-parameter Technical Notes topic for details on how Nexxim handles reference node configurations.

• Recapture bitmap image: When enabled, this option allows you to restore the original bitmap image of the symbol.

• Pin Direction: The pin direction option may be set to one of the following:

— All Left

— All Right

— I/I+N

— Odd-Even

— Manual Edit

If you choose Manual Edit, use the windows at lower left to Drag and drop text to manually edit the symbol

• Network Data Explorer: Allows you to view solution data by opening the Network Data Explorer.



When the N-port Symbol options have been entered, click OK or select another tab. For related information, see Exporting to a Nexxim State Space File.
