Ansoft Designer / Ansys Designer 在线帮助文档：

Schematic Editor >
   Starting the Schematic Editor >
       Configuring Schematic Editor Options >
           General

General

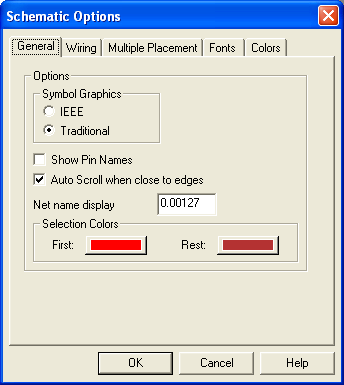

The General tab is initially selected when you choose Schematic Options from the Tools > Options submenu.

The following controls are available:

• Set Symbol Graphics to IEEE or Traditional. For more information see Displaying Symbols and The Symbol Tab.

• Show Pin Names specifies that pin names are to be displayed in the Schematic Editor

• Auto Scroll when close to edges specifies that the Schematic Editor display will scroll automatically when the cursor is placed close to the edge of the editor window

• Net name display distance sets the net name property display distance from the net

• Selection Colors sets the colors of the first and subsequent objects as they are selected
