Ansoft Designer / Ansys Designer 在线帮助文档：

Schematic Editor >
   N-Ports in Designer >
       Creating an N-Port Model


Creating an N-Port Model

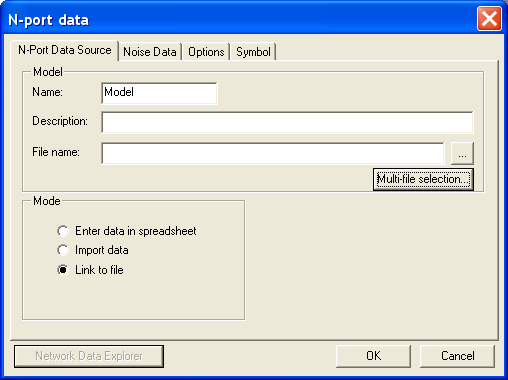

An N-port is a component whose behavior is specified by a set of frequency-dependent data such as S-parameters. To select/create an N-port element to place, select the schematic or layout that will contain it and then click Project > Add Model > Add Nport Model. The N-Port data dialog opens:



[spacer]



The N-port data dialog allows you to specify the name, number of ports, characterizing data, and other properties for the port you are about to place. After using the N-port data dialog to select/create an N-Port component, click OK to place the component. The individual tabs and options associated with the N-port data dialog are described in the following sections.



The topics for this section include:

• N-Port Data Source Tab

• Noise Data Tab

• Options Tab

• N-Port Data Symbol Tab
