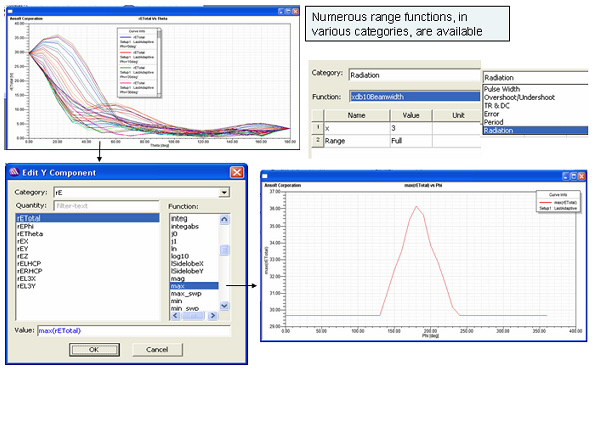

Range Functions are are special functions that use a
2D dataset as input, along with 0 or more additional parameters. Range
functions can be used to produce a user-created 2D report display that
is a collection of traces and their attributes. The trace collection
and attributes are used to generate a portion of a report-definition
that generates a family-of-curves in the report window.
Range Functions can be applied to a range (subset) of
points on an X-Y plot, and will then calculate a single-number representation
of the specified range, and display that number directly over a plotted
wave-form. Range functions can be used to extract trace characteristics
(such as max, min, overshoot) from a plot and use those values for additional
plotting, or use the values for exporting to a file, where the data
table formats are supported. Range Functions are listed in the Reporter
dialog and Output Variable dialog for users to employ. Extracted
trace characteristics may also be used in optimetrics.
For example, with a wave-form in a transient plot that
contains a square pulse, a range function can calculate and display
a single value that represents the High-to-Low/Low-to-High transition
states. Or, with a plot that shows a pulse, the PulseWidth and RiseTime
Range Functions can use the entire plotted curve to calculate a single
number that represents the width or rise-time, and display that single-number
representation directly over the specified range of plotted points.
• Range functions trace characteristics
are displayed on the report window as a column in legend window
Range Function
|
Category
|
Description
|
Parameter(s)
|
avg
|
Math
|
Average of first param over the
second param.
|
N/A
|
avgabs
|
Math
|
Returns the mean of the absolute
value of the selected quantity.
|
N/A
|
bandwidth
|
AC
|
Returns the bandwidth of the selected
simulation quantity in Hz.
|
Base Gain: Ref AC magnitude; Base
phase: Ref phase angle
|
cang_deg
|
TR & DC
|
Cumulative angle of the first param
in degrees, along the second param (typically sweep variable). Returns
double.
|
N/A
|
cang_rad
|
TR & DC
|
Cumulative angle of the first param
in radians, along the second param (typically sweep variable). Returns
double.
|
N/A
|
crestfactor
|
TR & DC
|
Returns the crest factor (peak/RMS)
for the selected quantity.
|
N/A
|
deadtime
|
TR & DC
|
Obtains the latest time when the
qtyl is within a tolerance of zero.
|
Tolerance:The +/- bandwidth around
0
|
delaytime
|
TR & DC
|
Obtains the time from zero to 50%
of the target point.
|
Target: The target value for input
|
deriv
|
TR & DC
|
Derivative of first param over
second param.
|
N/A
|
distortion
|
TR & DC
|
Returns the total distortion for
the selected simulation quantity and an additional argument frequency,
which is the frequency in Hz at which to calculate the fundamental RMS
of the simulation quantity.
|
Frequency: Freq in Hz at which
to calculate the RMS of the qty
|
duty
|
TR & DC
|
Duty cycle measurement.
|
N/A
|
eyeheight
|
TR & DC
|
Eye-diagram characteristics.
|
N/A
|
eyejitter
|
TR & DC
|
Eye-diagram characteristics.
|
N/A
|
eyewidth
|
TR & DC
|
Eye-diagram characteristics.
|
N/A
|
FFT
|
Math
|
Fast Fourier Transform. Returns
output signal.
|
Incoming signal.
|
formfactor
|
TR & DC
|
Returns the form factor (RMS/Mean
Absolute Value) for the selected quantity.
|
N/A
|
fundamentalmag
|
TR & DC
|
Returns the RMS value of the fundamental
frequency for the selected quantity and an additional argument frequency,
which specifies the fundamental frequency.
|
Frequency: Freq in Hz at which
to calculate the RMS of the qty
|
gaincrossover
|
AC
|
Returns the gain crossover frequency
(where the gain is 0 dB) of the selected simulation quantity in Hz.
|
Base Gain: Ref AC magnitude; Base
phase: Ref phase angle
|
gainmargin
|
AC
|
Returns the gain margin in dB at
the phase crossover frequency of the selected simulation quantity.
|
Base Gain: Ref AC magnitude; Base
phase: Ref phase angle
|
iae
|
Error
|
Returns the integral of the absolute
deviation of the selected quantity from a target value that is entered
via the additional argument.
|
Target: Target value
|
integ
|
Math
|
Integral of the selected quantity.
Uses trapezoidal area.
|
N/A
|
integabs
|
Math
|
Returns the integral of the absolute
value of the selected qty.
|
N/A
|
ise
|
Error
|
Returns the integral of the squared
deviation of the selected quantity from a target value that is entered
via an additional argument.
|
Target: Target value
|
itae
|
Error
|
Returns the time-weighted absolute
deviation of the selected quantity from a target value that is entered
via an additional argument.
|
Target: Target value
|
itse
|
Error
|
Returns the time-weighted squared
deviation of the selected qty from a target value that is entered via
an additional argument.
|
Target: Target value
|
lowercutoff
|
AC
|
Returns the lower 3dB frequency
of the selected simulation channel in Hz.
|
Base Gain: Ref AC magnitude; Base
phase: Ref phase angle
|
max
|
Math
|
Maximum (of magnitudes).
|
N/A
|
min
|
Math
|
Minimum (of magnitudes).
|
N/A
|
overshoot
|
Overshoot/Undershoot
(Overridable)
|
Calculates peak overshoot given
a threshold value and number of evenly spaced points over entire time
range.
|
Threshold:The reference value from
where the overshoot/undershoot is calculated; Number of Points: Number
of evenly spaced time points
|
peakgain
|
AC
|
Returns the peak gain of the selected
simulation quantity in dB.
|
Base Gain: Ref AC magnitude; Base
phase: Ref phase angle
|
peakgainfreq
|
AC
|
Returns the frequency in Hz at
which the peak gain of the selected simulation quantity occurs.
|
Base Gain: Ref AC magnitude; Base
phase: Ref phase angle
|
per
|
Period
(Overridable)
|
Calculates period.
|
Threshold:Y transition value which
determines the period; Number of Points: Number of evenly spaced time
points
|
phasecrossover
|
AC
|
Returns the phase crossover freq,
at which the phase is -180 degrees, in Hz for the selected simulation
quantity.
|
Base Gain: Ref AC magnitude; Base
phase: Ref phase angle
|
phasemargin
|
AC
|
Returns the phase angle in degrees
at the gain crossover frequency of the selected simulation quantity.
|
Base Gain: Ref AC magnitude; Base
phase: Ref phase angle
|
pk2pk
|
Math
|
Difference between max and min
of the first param over the second param. Returns the peak-to-peak value
for the selected simulation quantity.
|
N/A
|
pkavg
|
Math
|
Returns the ratio of the peak to
peak-to-average for the selected quantity.
|
N/A
|
pmax
|
Period
(Overridable)
|
Maximum period of input stream.
|
Threshold:Y transition value which
determines the period; Number of Points: Number of evenly spaced time
points
|
pmin
|
Period
(Overridable)
|
Minimum period of input stream.
|
Threshold:Y transition value which
determines the period; Number of Points: Number of evenly spaced time
points
|
prms
|
Period
(Overridable)
|
Rms of period of input stream.
|
Threshold:Y transition value which
determines the period; Number of Points: Number of evenly spaced time
points
|
pulsefall9010
|
Pulse Width
|
Returns the pulse fall time of
the selected quantity derived from estimates of the signal at 90% and
10% of its peak value.
|
N/A
|
pulsefront1090
|
Pulse Width
|
Returns the pulse front time of
the selected quantity derived from estimates of the signal at 10% and
90% of its peak value.
|
N/A
|
pulsefront3090
|
Pulse Width
|
Returns the pulse front time of
the selected quantity derived from estimates of the signal at 30% and
90% of its peak value.
|
N/A
|
pulsemax
|
Pulse Width
|
Returns the pulse maximum from
the front and tail estimates for the selected quantity.
|
N/A
|
pulsemaxtime
|
Pulse Width
|
Returns the time at which the maximum
pulse value of the selected quantity is reached.
|
N/A
|
pulsemin
|
Pulse Width
|
Returns the pulse minimum from
the front and tail estimates for the selected quantity.
|
N/A
|
pulsemintime
|
Pulse Width
|
Returns the time at which the minimum
pulse value of the selected quantity is reached.
|
N/A
|
pulsetail50
|
Pulse Width
|
Returns the pulse tail time of
the selected quantity from the virtual peak to 50%.
|
N/A
|
pulsewidth5050
|
Pulse Width
|
Returns the pulse width of the
selected quantity as measured from the 50% points on the pulse front
and pulse tail.
|
N/A
|
pw_minus
|
Pulse Width
(Overridable)
|
Pulse width of the first negative
pulse.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
pw_minus_avg
|
Pulse Width
(Overridable)
|
Average of the negative pulse width
input stream.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
pw_minus_max
|
Pulse Width
(Overridable)
|
Max. Pulse width of the negative
pulse of input stream.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
pw_minus_min
|
Pulse Width
(Overridable)
|
Min. Pulse width of the negative
pulse of input stream.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
pw_minus_rms
|
Pulse Width
(Overridable)
|
RMS of the negative pulse width
input stream.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
pw_plus
|
Pulse Width
(Overridable)
|
Pulse width of first positive pulse.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
pw_plus_avg
|
Pulse Width
(Overridable)
|
Average of the positive pulse width
input stream.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
pw_plus_max
|
Pulse Width
(Overridable)
|
Max. Pulse width of the positive
pulse of input stream.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
pw_plus_min
|
Pulse Width
(Overridable)
|
Min. Pulse width of the positive
pulse of input stream.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
pw_plus_rms
|
Pulse Width
(Overridable)
|
RMS of the positive pulse width
input stream.
|
Threshold:Y transition value which
determines the pulse width ; Number of Points: Number of evenly spaced
time points
|
ripple
|
Math
|
Returns the ripple factor (AC RMS/Mean)
for the selected quantity.
|
N/A
|
risetime
|
TR & DC
|
Obtains the time taken to go from
10% to 90% of target point.
|
Target: The target value for input
|
rms
|
Math
|
Returns total RMS of the selected
quantity.
|
N/A
|
rmsAC
|
Math
|
Returns the AC RMS for the selected
quantity
|
N/A
|
settlingtime
|
TR & DC
|
Returns the latest time at which
the value of the selected simulation quantity fell outside its tolerance
band. The target value of the quantity and the +/- bandwidth of the
tolerance band are the additional args.
|
Target; Tolerance
|
undershoot
|
Overshoot/Undershoot
(Overridable)
|
Calculates peak undershoot given
a threshold value and number of evenly spaced points over entire time
range.
|
Threshold:The reference value from
where the overshoot/undershoot is calculated; Number of Points: Number
of evenly spaced time points
|
uppercutoff
|
AC
|
Returns the upper 3dB frequency
of the selected simulation channel in Hz.
|
Base Gain: Ref AC magnitude; Base
phase: Ref phase angle
|
XAtYMax
|
Math
|
Returns the X value at maximum
Y.
|
N/A
|
XAtYMin
|
Math
|
Returns the X value at minimum
Y.
|
N/A
|
XAtYVal
|
Math
|
Returns the X value at the first
occurrence of Y value.
|
Y Value:Y value at which we need
to find X
|
YdbBandwidth
|
Math
|
Returns y value that is ydB above
the y-value at specified x-value.
|
Takes 2 parameters: x-value at
which measurement is to be done, ydB value.
|
淘宝官方店 ![[spacer]](1p.gif){kind=small}
Ansoft Designer / Ansys Designer 在线帮助文档：
