HFSS and Planar EM Simulators >
Working with Materials >
   Physical Definition for EM Models


Physical Definition for EM Models

To verify that a component possesses a physical definition, access the Edit Component dialog. This can be accomplished one of two ways, depending upon whether the component is user-defined or is part of the Designer library.



User-Defined Components

If the component is contained in a loaded project:

1. In the project tree, expand the Definitions folder and the Components subfolder for the project that contains the component you want to examine.

2. Double-click the component entry, or right-click the component entry and select Edit Component to open the Edit Component dialog.



Library Components

If the component is contained in a library known to Designer:

1. Select Tools > Edit Libraries > Components to open the Edit Libraries dialog, then select the component you want to edit.

2. Click Edit Component, or double-click the selected entry, to open the Edit Component dialog.

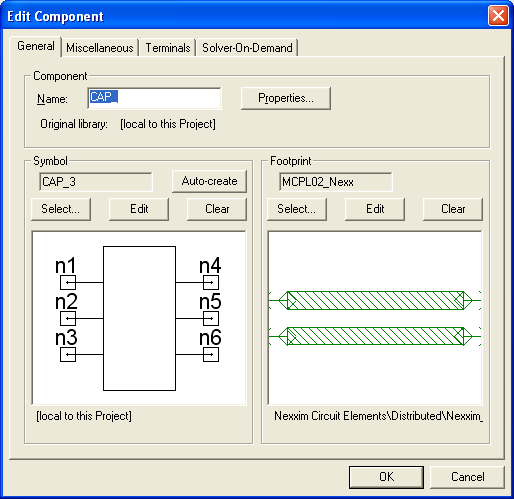

When the Edit Component dialog opens, it displays the definition of the selected component.

[spacer]

The physical definition of a component can be verified using the information displayed by the dialog. In particular, information related to the footprint of a component is displayed in the dialog.
