Mesh Continuity

Mesh Continuity

(Planar EM only)

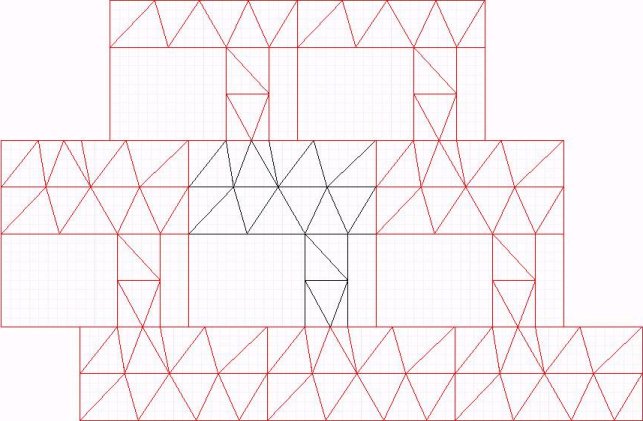

The mesh for a Frequency Selective Surface or Infinite Array element is continuous across patches. For example, in the following figure, the actual generated mesh (black), when manually tiled to simulate the Infinite Array (red), will appear continuous across mesh boundaries; that is, no vertex meets a triangle on an edge.
