Ansoft Designer / Ansys Designer 在线帮助文档：

HFSS and Planar EM Simulators >
Stackup Definitions for EM Models >
Layout Stackup

Layout Stackup

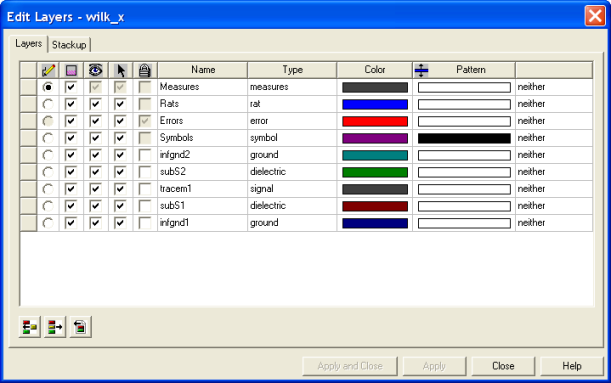

To access the stackup definition while working in the Layout Editor, select Layout > Layers. If you are working in the Schematic Editor, select Schematic > Layout Stackup. This opens the Edit Layers dialog.

You can now use the Edit Layers dialog controls to insert or remove layers and configure the various layer attributes. To configure stackup layers see Stackup Tab Controls.
