Footprint Stackup

Footprint Stackup

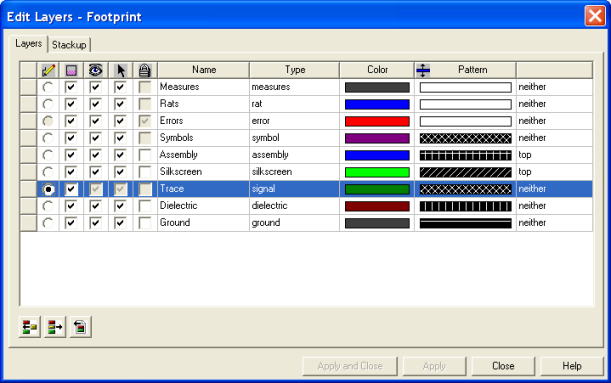

To access the footprint stackup, after the component has been placed in the Layout Editor, right-click the component and select Edit Footprint from the pop-up menu. This opens the Footprint Editor. Then, from the Footprint pull-down menu, select Edit Layers, which opens the Edit Layers dialog.

You can now use the Edit Layers dialog controls to insert or remove layers and configure the various layer attributes. To configure stackup layers see Stackup Tab Controls.
