Ansoft Designer / Ansys Designer 在线帮助文档：

HFSS and Planar EM Simulators >
Using the Estimate Module >
Estimating Matches Between Impedances >
Estimating Tuning Stub Parameters

Estimating Tuning Stub Parameters

Use the Impedance Match>Tuning Stub command to obtain an estimate of the location and the dimension of a tuning stub for matching an input impedance to a complex load impedance. The tuning stub is assumed to be an open-ended stub. If you have a microstrip line terminated in a complex load impedance, you can also use this command to estimate the location along the microstrip line where the input impedance, looking toward the load, is purely resistive.

Before using this command, keep the following things in mind:

• The numbers computed by this command are rough estimates only. Depending on the substrate parameters, the patch parameters may be different for patches on different layers; therefore, it is important that you select the desired metal layer before accessing this command.

• The estimated values may not agree exactly with the values computed by the simulation program. This command is meant to help you obtain a first iteration design. If you are designing a tuning stub, you can use the rough dimensions provided as a starting point. Once you have these, you can draw and simulate the structure, then fine-tune the design.

To estimate the location and the dimensions of a tuning stub:

1. Select the trace layer on which the tuning stub lies.

2. Click Impedance Match>Tuning Stub. Estimate parameters appear on the right side of the Estimate window.

3. Type the frequency in the Frequency box, in GHz. This frequency is independent of the maximum frequency entered in the solution setup.

4. Type the line width of the microstrip line connected to the load impedance in the Line Width box. The units for the width are the same as the current working units. The width of the tuning stub is assumed to be the same as the width of the line connected to the load.

5. Type the real part of the complex load impedance in the Real box. The number you enter must be real and greater than 0. The units for impedance are ohms.

6. Type the imaginary part of the complex load impedance in the Imaginary box.

7. Click Calculate to perform the estimate. The estimated information appears in the following boxes:

Location, D	Displays the estimated location for the tuning stub in the current working units. This is the distance measured from the load impedance along the microstrip line.
Length, L	Displays the estimated line length for the open-ended stub in the current working units. The width of the stub is assumed to be the same as width of the microstrip line specified in the input area.
Distance Away	Displays the location along the microstrip line where the input impedance, looking toward the load, is purely real. The estimated location is the distance measured from the load along the microstrip line. The unit for the distance is the same as the current working units.
Real Impedance	Displays the impedance value at the location along the microstrip line where the input impedance, looking toward the load, is purely real.

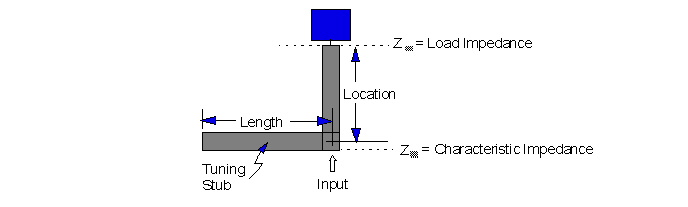

The following figure displays the location and line length for an open-ended stub. The width of the stub is assumed to be the same as the width of the microstrip line specified in the input area:

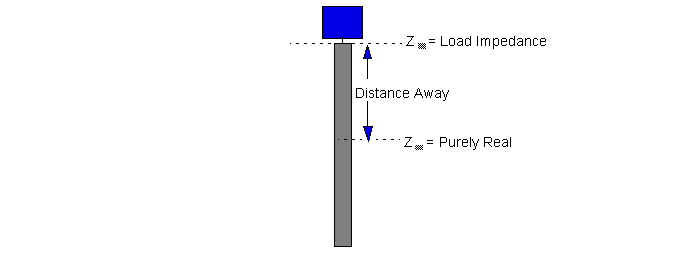

The following figure displays the location along a microstrip line where the input impedance is purely real:
