Ansoft Designer / Ansys Designer 在线帮助文档：

HFSS and Planar EM Simulators >
Setting Up Excitations >
   Edit Port Excitations


Edit Port Excitations

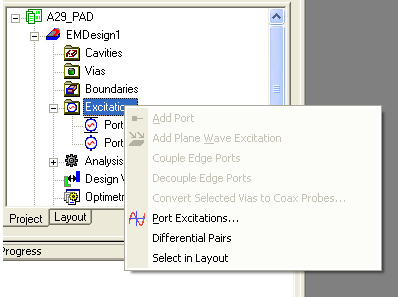

Many of the excitation features described in the following sections can be accessed by right-clicking the Excitations folder in the Project Manager to bring up the following menu:

[spacer]

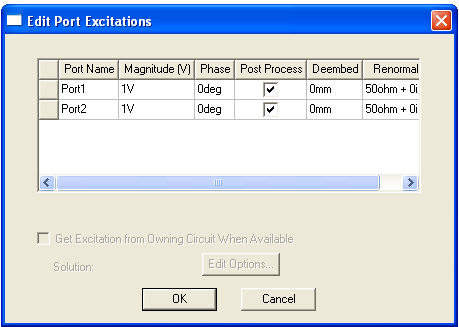

Select Port Excitations to open the Edit Port Excitations dialog:

[spacer]

You can use this dialog to modify port excitations, including post processing and renormalization settings.



Note

Renormalization is ignored if it is set to zero, but de-embedding is still honored. The following warning message is produced for all ports with a zero post-processing renormalization impedance: Zero impedance on port '<arg1>' is ignored; renormalization will by skipped for this port.
