Ansoft Designer / Ansys Designer 在线帮助文档:


Optimetrics >
   Setting up a Statistical Analysis  >
       Setting the Distribution Criteria >
           Statistical Cutoffs


Statistical Cutoffs

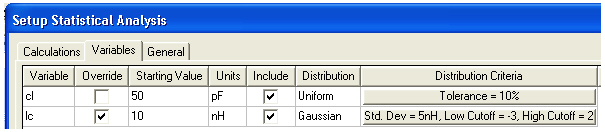

The low and high cutoff values multiply the Gaussian Standard Deviation value. The variable “lc”, below uses a Gaussian distribution that extends three standard deviations below 10nH and two standard deviations above 10nH. Outside these values, the Gaussian distribution is truncated, effectively giving a Gaussian distribution on a pedestal.

[spacer]

Uniform distributions such as variable “cl” above use only the Tolerance value, and do not have cutoffs.
