   Selecting a Substrate at the Component Level

Selecting a Substrate at the Component Level

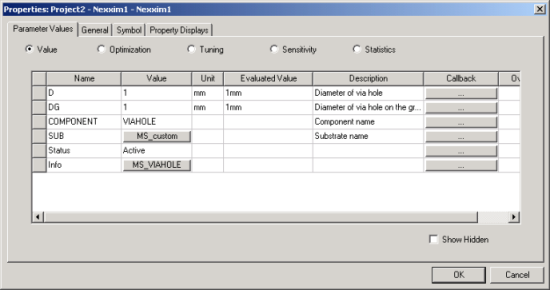

To specify a custom substrate type, or to change to a different predefined substrate type, you must make the assignment individually for each component. Double-click on the distributed element to open the Properties window:



The SUB property identifies the substrate that is currently applied to the element. In the example, above, we defined a custom substrate type named “MS_custom”, which appears as the vlaue of the SUB property.

To change to a different substrate type, enter the desired substrate name as the value of the SUB property, then click OK.



Note

All distributed elements in a given design must use the same substrate type.
