   Transmission Line, Electrical Length

Transmission Line, Electrical Length




[spacer]

Netlist Format

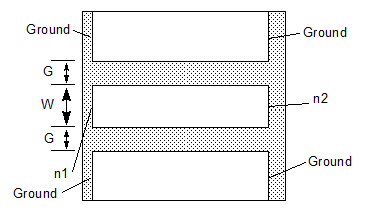

An instance of a coplanar waveguide transmission line, electrical length has the following netlist syntax:

Axxx n1 n2 [W=val] [E=val] [F=val] [G=val]
COMPONENT=cpwtrl_e SUBSTRATE=substrate_name

n1 and n2 are the names of the nodes attached to the bend. The entry COMPONENT=cpwtrl_e identifies the element as a coplanar waveguide transmission line, electrical length.

The SUBSTRATE=substrate_name is the coplanar waveguide substrate model name selected for the design (see Selecting a Coplanar Waveguide Substrate for details).




Coplanar Waveguide Transmission Line, Electrical Length Instance Parameters

Parameter

Description

Units

Default

W

Width of center conductor

Meter

1.0e-3

G

Slot gap width

Meter

1.0e-3

E

Electrical length

Degree

45

F

Reference frequency for electrical length

Hertz

1e9


Netlist Example

A5 Port1 Port2 W=0.75e-3 G=1.1e-3 F=2e9 COMPONENT=cpwtrl_e SUBSTRATE=CPW1

where CPW1, the selected layout technology or substrate type, has a definition such as:

.SUB CPW1 CPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4 HL=2.54e-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)
