Ansoft Designer / Ansys Designer 在线帮助文档:


Nexxim Simulator >
Nexxim Component Models >
Coplanar Waveguide Elements >

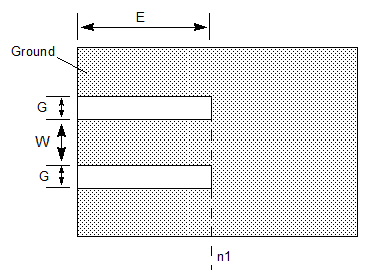

   Shorted Stub, Electrical Length

Shorted Stub, Electrical Length




[spacer]

Netlist Format

An instance of a coplanar waveguide shorted stub, electrical length has the following netlist syntax:

Axxx n1 [W=val] [G=val] [E=val] [F=val]
COMPONENT=cpw_short_stub_electrical SUBSTRATE=substrate_name

n1 is the name of the node attached to the shorted stub. The entry COMPONENT=cpw_short_stub_electrical identifies the element as a coplanar waveguide shorted stub, electrical length.

The SUBSTRATE=substrate_name is the coplanar waveguide substrate model name selected for the design (see Selecting a Coplanar Waveguide Substrate for details).




Coplanar Waveguide Shorted Stub, Electrical Length Instance Parameters

Parameter

Description

Units

Default

W

Width of center conductor

Meter

1.0e-3

G

Slot gap width

Meter

1.0e-3

E

Electrical length

Degree

45

F

Reference frequency for E

Hz

1.0e9


Netlist Example

A5 Port1 W=0.75e-3 G=1.1e-3 E=50 F=2.039 COMPONENT=cpw_short_stub_electrical SUBSTRATE=CPW1

where CPW1, the selected layout technology or substrate type, has a definition such as:

.SUB CPW1 CPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4 HL=2.54e-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)
