Ansoft Designer / Ansys Designer 在线帮助文档:


Using Component Libraries >
Using the Component Editor >
   The Edit Component Dialog Box >
       The Edit Component Properties Dialog Box

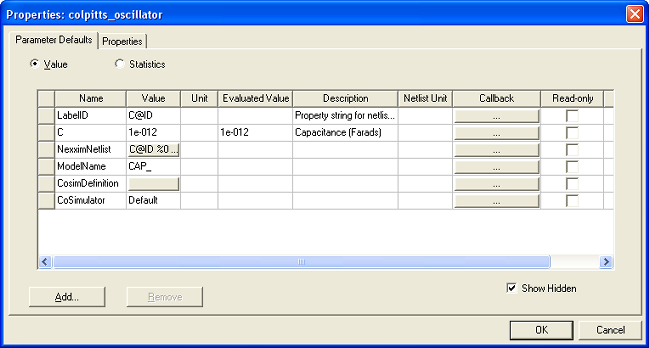

The Edit Component Properties Dialog Box

To open the Properties dialog box for a selected component, double click the component definition in the project tree to open the Edit Components dialog box. Then, in the Edit Components dialog, click Properties to open the dialog.



Parameter Defaults Tab

This tab displays and sets the default values for component parameters for general analysis (Value option) or statistical analysis (Statistics option).



The topics for this section include:

Value Option

Statistics Option

Reserved System Parameters
