           Statistics Option

Statistics Option

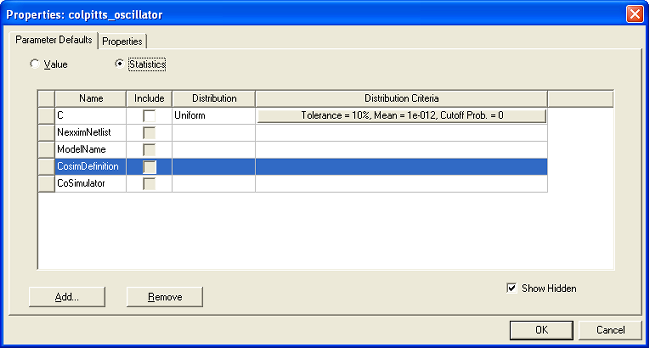

When this option is selected, the Parameter Defaults tab lists, displays, and sets the default statistics for component parameters during general analysis.

Name—Displays the names of component parameters.

Include—Controls whether or not the associated component parameter will be varied during statistical analysis. Check Include for each parameter you want Designer to vary during statistical analysis.

Distribution—Displays and controls whether the parameter value distribution is Uniform or Gaussian. To change the Distribution setting, click in the cell to display the options, and then click the option you want.

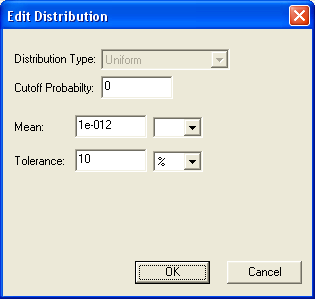

Distribution Criteria—Click the display bar to open the Edit Distribution dialog. The Distribution Type pulldown menu displays whether the distribution is Uniform or Gaussian, and you can specify values for Cutoff Probability, Mean, and Tolerance. Units for Mean and Tolerance can be set using their adjacent pulldown menus.

Click OK to save your changes and close the dialog, or click Cancel to close the dialog without saving any changes.
