Layout Editor User Guide >
Drawing a Model >
   Aligning Objects


Aligning Objects

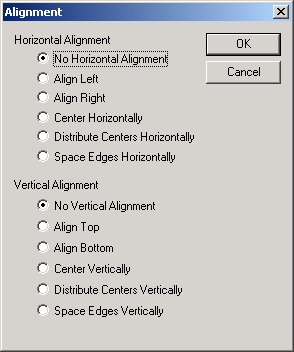

To align objects in the Layout Editor, select one or more objects in the editor and select Draw > Align. This opens the Alignment dialog.

[spacer]



The following horizontal controls are available:

• No Horizontal Alignment

• Align Left

• Align Right

• Center Horizontally

• Distribute Centers Horizontally will place multiple polygons so that the horizontal spaces between their centers are equal

• Space Edges Horizontally will place multiple polygons so that the horizontal spaces between their edges are equal



The following vertical controls are available:

• No Vertical Alignment

• Align Top

• Align Bottom

• Center Vertically

• Distribute Centers Vertically will place multiple polygons so that the vertical spaces between their centers are equal

• Space Edges Vertically will place multiple polygons so that the vertical spaces between their edges are equal



Auto-Aligning Objects

Auto-alignment of components is available by selecting one or more objects and clicking Ctrl-m. But auto-alignment only rotates/positions components to match connections — it does not flip or unflip them. Therefore, the auto-alignment of components which are flipped or have twisted connections will not align properly.
