Ansoft Designer / Ansys Designer 在线帮助文档：

Importing and Exporting Data >
   Importing Data >
       Importing Solutions >
           N-Port Data Tab for Imported Solutions >
               Noise Data Tab for Imported Solutions

Noise Data Tab for Imported Solutions

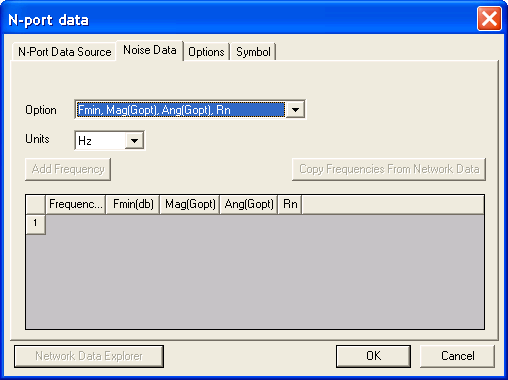

The Noise Data tab can be used to enter solution data manually or used to view solution data from an imported file.

• To view the contents of an imported solution, double-click on the solution in the project tree and select the Noise Data tab from the N-port data dialog.

• To manually enter solution data for postprocessing, select Enter data in spreadsheet on the N-Port Data tab, and then select the Noise Data tab from the N-port data dialog.

The following controls are available:

Domain — Sets the Frequency or Time domain.

Format — Sets the Format to one of the following: Magnitude/Phase, Real/Imaginary, or dB Phase.

Units — In the Frequency domain, sets the units of frequency: Hz, KHz, MHz, GHz, THz, or rps. In the Time domain, selects the units of time: fs, ps, ns, us, ms, or s.

S Matrix — Identifies the data as S-parameter values.

Y Matrix — Identifies the data as Y-parameter values.

Z Matrix — Identifies the data as Z-parameter values.

Gamma — Identifies the data as Gamma values.

Z0 — Identifies the data as Z0 values.

Ports — Sets the number of signal ports.

Phase Rotation — Click to set the Phase Rotation of the N-Port Noise Data source.

When the Network Data options have been entered, click OK or select another tab.

Note

• The Designer Planar EM tool can interpret only frequency-domain data.

• If the solution data file contains complex propagation constants or characteristic impedance values, you can select Gamma or Z_o to view the data — but to run a simulation in Designer, the information is not required.
