           N-Port Data Tab for Imported Solutions

N-Port Data Tab for Imported Solutions

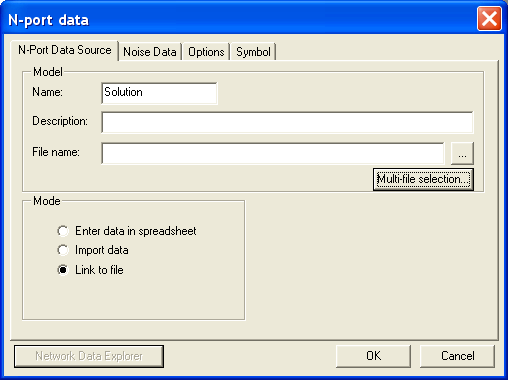

The N-Port Data Source tab is displayed when the N-port data dialog opens.

Model Name — Used to set or change the name of the imported solution as it will appear in the project tree. To change the name, click in the box and then type the name you want.

Description — Used to set or change the description of the imported solution. To change the description, click in the box and then type the description you want.

File Name — Used to set or change the file name of the imported solution. To set the file name, click in the box and then type the file name you want, or click the browse button to search for a file.

Multi-file selection — Used to import an S-element file. For more information, see below.

Mode — The network solution data can be entered manually, copied into the project from an external file as Import data, or read from an external Link to file at analysis time. To manually enter solution data, click Enter data in spreadsheet, and enter the network data as described in the Noise Data tab section.

To import an S-element file and copy it into the project from an external file:

1. Click Import Data in the N-port data dialog shown above.

2. Specify the File name in one of the following ways:

• In the filename box, type the file name, including the full pathname, of the file that contains the network parameters you want to use.

• Click the browse (...) button to open the Select File dialog box.

a. Select the appropriate file type from the Files of type list:

b. Use the Look in field to browse to the directory containing the desired file.

c. Select the file in one of the following ways:

• Click the file’s entry in the list.

• Type the file’s name in the File Name box.

d. Click Open.

Once you have finished, the N-port data is copied into the project from an external file.

Note

If you choose multiple files using the Multi-file selection… and create a Text Array variable, then the Sparameter data will NOT be imported. It will be the same as if you had chosen the Link to file option.

To import solution data and copy it into the project from an external file:

1. Click Import Data.

2. Specify the filename in one of the following ways:

• In the filename box, type the file name, including the full pathname, of the file that contains the network solution.

• In the File group, select a file location option (Use Path, In PersonalLib folder, In userlib folder, or In syslib folder).

• Click the browse (...) button to open the Open dialog.

a. On the Open dialog, select the appropriate file type from the Files of type list.

— Touchstone (.sNp)

— Planar EM/HFSS v6.0 and higher (.szg)

— Touchstone (.yNp)

— Touchstone (.zNp)

— Touchstone (.tou)

— CITIfile (.cit)

— SSS file (.sss)

b. Use the Look in field to browse to the directory containing the desired file.

c. Select the file in one of the following ways:

• Click the file’s entry in the list.

• Type the file’s name in the File Name box.

d. Click Open.

Once you have specified a file, you can view its contents in the Noise Data tab.

Note

S-parameter SSS datafile names must be of the format

“<filename>_ <ports> .sss”

where:

<filename> is an alphanumeric string

<ports> is an integer that specifies the number of ports

such as:

SparamFile_4.sss

To specify an external file from which network parameter data will be read at analysis time:

1. Click Link to file.

2. In the File group, select a file location option (Use Path, In PersonalLib folder, In userlib folder, or In syslib folder).

3. Specify a filename in either of the following ways:

• In the filename box, type the filename , including the full pathname, of the file that contains the network parameters you want to use.

• Click the browse button to open the Open dialog box.

a. Select the appropriate file type in the Files of type list.

b. Use the Look in field to browse to the directory containing the appropriate file.

c. Select the file in one of the following ways:

• Click the file’s entry in the list.

• Type the file’s name in the File Name box.

d. Click Open.

Once you have specified a file, you can view its contents in the Noise Data tab.
