Ansoft Designer / Ansys Designer 在线帮助文档：

Getting Started with Ansoft Designer >
EM Design >
   Set up an EM Analysis

Set up an EM Analysis

Add a solution setup:

1. Each set of solution parameters to be solved by Designer is listed as a setup under Analysis in the project tree. To add a new solution setup to a project using basic, initial meshing tools, use one of the following:

• On the EM Design menu, point to Solution Setup, and then click Add Planar EM Solution Setup or Add HFSS Solution Setup.

• Or right-click Analysis in the project tree and then click Add Planar EM Solution Setup or Add HFSS Solution Setup.

• Or click the Add Planar EM Solution Setup toolbar icon or the Add HFSS Solution Setup toolbar icon.

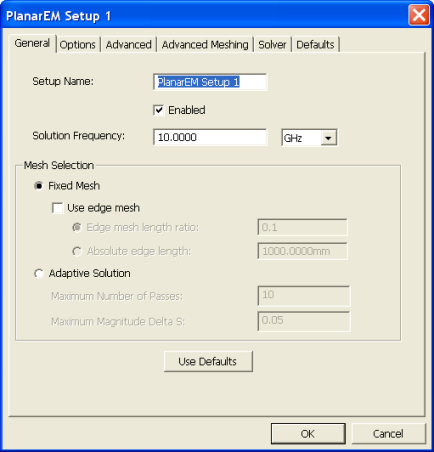

2. When the Setup dialog box appears (this example displays a PlanarEM setup), select Fixed Mesh and enter 5.0GHz in the Frequency text box. Note, there is no space between “5.0” and “GHz.”

For more information on setting up an HFSS simulation, see Add HFSS Solution Setup.

c. Click OK and the sweep setup dialog appears.
