Run the Analyses

Run the Analyses

1. Run the analysis:

• To sequentially run all of the sweep setups that exist in the design, do the following:

On the EM Design menu, click Analyze. (Alternatively, in the Project Manager, right-click Analysis and then click Start Analysis.)

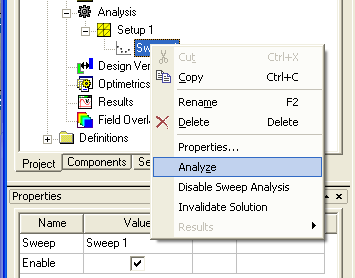

• Or, you can run a single sweep: In the Project Manager, right-click the appropriate sweep icon and then click Start Analysis.

2. Check the status while the analysis is running:

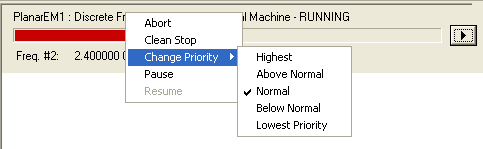

a. While the simulation is running, you can pause or abort the simulation by right-clicking the Progress window. (If the window is not visible, click View on the menu bar, and then select Progress Window.)

b. To alter the priority of a particular simulation: Right-click the Progress Window, click Change Priority, and then select the appropriate setting (Normal, Lowest Priority, Highest, Above Normal, Below Normal).

c. The Clean Stop selection terminates the simulation when simulation for the current frequency point is completed.
