Plot Return Loss

Plot Return Loss

To create a report:

1. First open the Create Report dialog box by doing either of the following:

• On the EM Design menu, point to Results, and then click Create Standard Report > Rectangular Plot.

• In the Project Manager, right-click Results, and then click Create Standard Report > Rectangular Plot.

The Report dialog opens with the Trace tab selected.

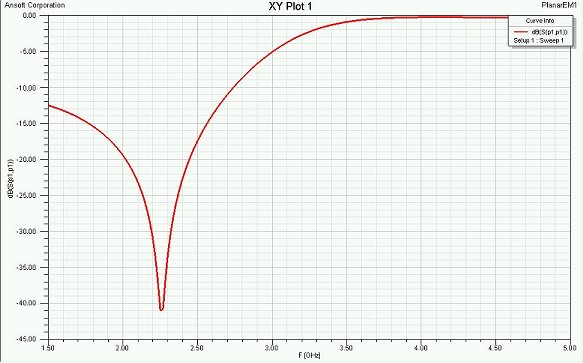

2. Plot the return loss:

a. Select Setup 1: Sweep 1 in the Solution list.

b. In the Category, Quantity, and Function lists select S Parameters, S(p1, p1) and dB.

c. Click New Report, then click Close.

For additional details about formatting the plot (for example, labeling the axes and changing trace color) see Generating Reports and Postprocessing in the online help.
