           Edit Amplifier4 Properties


Edit Amplifier4 Properties

For Amplifier4, a local variable will be used to define the gain.

1. Double click the fourth amplifier, and the Properties dialog box appears.

Set the values of the Amplifier4 properties as shown in the following table. Leave all other values unchanged.

[spacer]

Name

Amplifier4

MS11

-15

MS12

-50

MS21

Gain_1

MS22

-15

P1DB

5dBm

NF

6

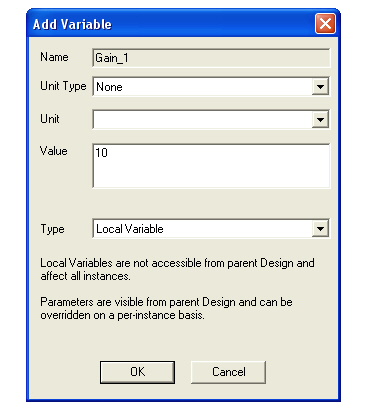

2. When you enter Gain_1 as the value for the MS21 property, the Add Variable dialog box appears.

3. The Name box shows the name of the variable, Gain_1.

4. In the Value box, enter 10.

5. Click OK to close the Add Property dialog box.

For additional explanation of parameters and variables, see the topic on Variable Types and Scoping.

6. Complete entering property values, then click OK to close the Properties dialog box.
