Ansoft Designer / Ansys Designer 在线帮助文档:


Dynamic Links and Solver On Demand >
   Solver On Demand >
       Setting Up Models for a Component Type >
           Netlist


Netlist

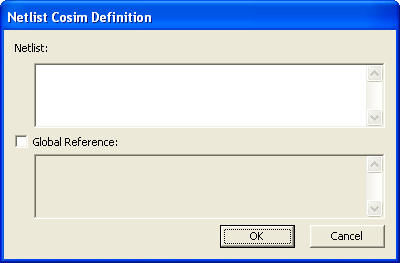

In the Solver on Demand tab of the Edit Component dialog, when you choose Netlist from the model pulldown menu and click Add, the following cosimulation definition dialog appears. (The same dialog appears when you click Edit with a previously added Netlist model name selected).



[spacer]



• Click in the Netlist field to define a new netlist or make changes to an existing netlist

• Click Global reference to define a global reference

• Click OK to implement your changes, close the dialog, and return to the Edit Component dialog



Click OK to save your changes and close the dialog, or click Cancel to close the dialog without saving any changes.
