MultiProduct Netlist

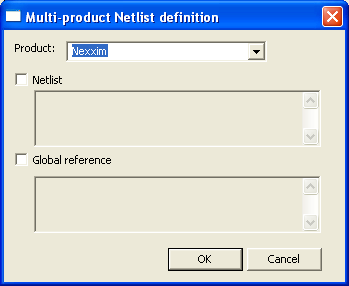

In the Solver on Demand tab of the Edit Component dialog, when you choose MultiProduct Netlist from the model pulldown menu and click Add, the following netlist definition dialog appears. (The same dialog appears when you click Edit with a previously added MultiProduct Netlist model name selected).

• Click the pulldown Product menu to choose which Designer product netlist to define

• Click in the Netlist field to define a new netlist or make changes to an existing netlist

• Click Global reference to define a global reference

Click OK to implement your changes, close the dialog, and return to the Edit Component dialog.
