Ansoft Designer / Ansys Designer 在线帮助文档：

Dynamic Links and Solver On Demand >
   Solver On Demand >
       Setting Up Models for a Component Type >
           HFSS Model

HFSS Model

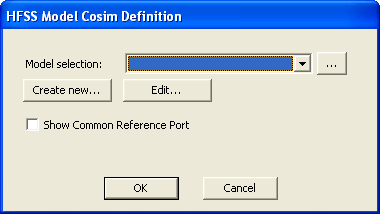

In the Solver on Demand tab of the Edit Component dialog, when you choose HFSS Model from the model pulldown menu and click Add, the following cosimulation definition dialog appears. (The same dialog appears when you click Edit with a previously added HFSS Model name selected).

• Use the Model Selection pulldown menu, or browse (...) to select a different symbol

• If desired, Create New or Edit the model

• If desired, click Show Common Reference Port

Click OK to save your changes and close the dialog, or click Cancel to close the dialog without saving any changes.
