关于GSM/EDGE的均衡问题,请熟悉这个的指教

12-14

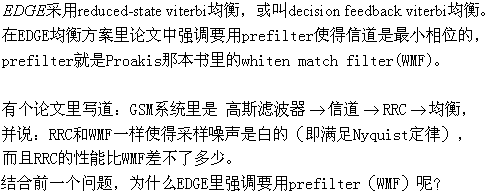

前几天版上有关于均衡问题的一些讨论,我最近也正在做这个,参考的是GSM/EDGE的均衡方案,有些问题不是很明白,请研究过GSM/EDGE均衡技术的不吝指教:

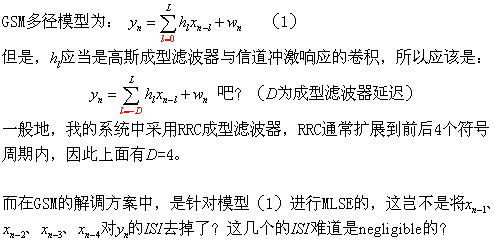

那个表达式你这样说对麽?
那个0到L是径数量吧,不是时间。

x(n)是调制后的符号,经过 高斯成型-->多径信道-->RRC之后的等效信道应该是h(-D),...,h(0),...h(L),h的非因果性是由成型滤波器引起的,这个理解有问题么?

I guess in your question 1 you can also include your precursors in the MLSE. But it's strange that in equation (1) the h_l is the convolution of channel response and tx shaping filter. What is used for rx filter before the symbol rate sampling?
The reason for prefilter is to reduce the composite channel response length. Also Viterbi equalizer requires white noise unless you somhow modify it. So The WMF obviously satisfies the above two requirements.
