这样设置强发LTE Band1,对吗,为啥发布出来啊

05-08
QRCT连上了,终端,FTM模式。MSM8916,WTR4905,请问大神,为何发布出来啊啊?
=================================================

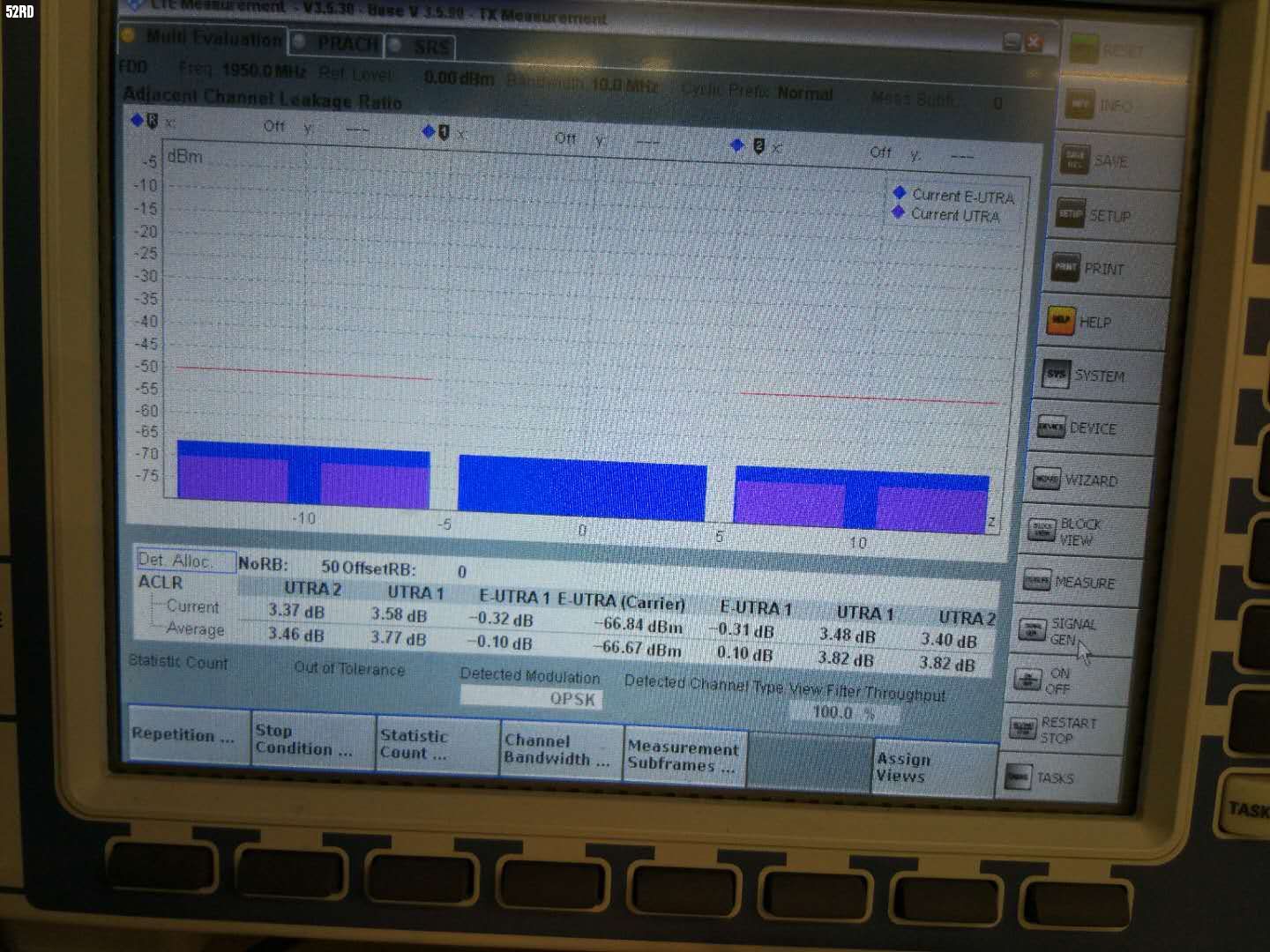

CMW500截图

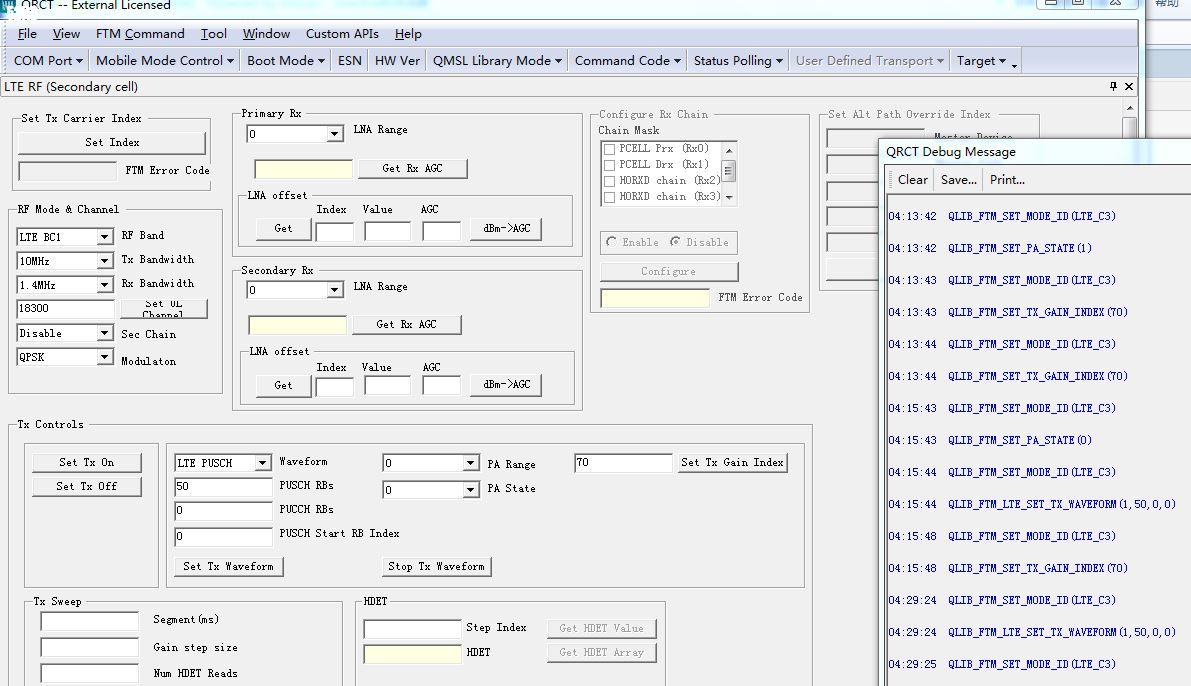

QRCT设置截图


不清楚,,关注中,,


FTM Rx/Tx path verification – LTE Tx
1. Set the waveform parameters as follows, and then click Set Tx Waveform:
 Waveform = LTE PUSCH
 PUSCH RBs = 50
 PUCCH RBs = 0
 PUSCH Start RB Index = 0
2. In the PA State field, set your requirement.
NOTE: PA Range is used to control the GRFC gain state.
3. Enter a Gain Index value, and click Set Tx Gain Index.
4. Click Set Tx On.
5. Repeat step 2 to ensure the device Tx is in the expected PA state.
 For the correct PDM values of WTR4905, refer to WTR4x05 and RF Cards Overview (80-NT180-2)
 If PDM/RGI is out of range, there is no Tx power output.

5. Repeat step 2 to ensure the device Tx is in the expected PA state.
 For the correct PDM values o

Band 1 应该没有1.4MHz带宽,我觉得要改一下
