BAND2 TX SUBBAND FAIL

请教大家一下，BAND2的平坦度怎么调试:

2015/09/02 09:12:45.984 CWcdmaApcClass::SampleTxPower() = 13.568960
2015/09/02 09:12:45.984 CWcdmaApcClass::InitiatePdMeasurementSubbandCal()
2015/09/02 09:12:45.984 CWcdmaApcClass::InitiatePdMeasurement()
2015/09/02 09:12:46.000 CWcdmaApcClass::InitiatePdMeasurement() = 486
2015/09/02 09:12:46.109 CWcdmaApcClass::GetSubbandMaxUarfcn(): Band: 1, PA mode: 0, freq_idx: 0, Max UARFCN: 12
2015/09/02 09:12:46.109 CWcdmaApcClass::SampleTxPowerSubbandCal()
2015/09/02 09:12:46.109 [GPIB] ----RCT_WCDMA_APC_ChangeChannel----
2015/09/02 09:12:46.109 [GPIB] CALL:UPLink:CHANnel 12;*OPC?
2015/09/02 09:12:46.109 [GPIB] 0: 1
2015/09/02 09:12:46.109 CWcdmaApcClass::SampleTxPower() Band: 1, UARFCN: 12, PA MODE: 0, TPC Index: 9, Trigger Type: 0, Trigger Delay: 100ms
2015/09/02 09:12:46.109 CWcdmaApcClass::DutTx()
2015/09/02 09:12:46.250 [GPIB] ----RCT_WCDMA_APC_Initiate----
2015/09/02 09:12:46.250 [GPIB] 0: INITiate:WCPower
2015/09/02 09:12:46.453 [GPIB] INITiate:ON?
2015/09/02 09:12:46.453 [GPIB] 0: WCP
2015/09/02 09:12:46.453 [GPIB] ----RCT_WCDMA_APC_FetchResult----
2015/09/02 09:12:46.453 [GPIB] Fetch:WCPower:POWer?
2015/09/02 09:12:46.453 [GPIB] 0: -3.44670300E+001
2015/09/02 09:12:46.453 [GPIB] FETCh:WCPower:INTegrity?
2015/09/02 09:12:46.453 [GPIB] 0: +6
2015/09/02 09:12:46.453 CWcdmaApcClass::SampleTxPower() = -34.467030
2015/09/02 09:12:46.453 CWcdmaApcClass::InitiatePdMeasurementSubbandCal()
2015/09/02 09:12:46.453 CWcdmaApcClass::InitiatePdMeasurement()
2015/09/02 09:12:46.484 CWcdmaApcClass::InitiatePdMeasurement() = 492
2015/09/02 09:12:46.593 [*Error*] Power offset DB compensation(48.04) is invalid[-5.00, 5.00] in UL: 12
WCDMA_APC_PA_SUBBAND_COMPENSATION_OUT_OF_RANGE => 262
##

Calibration and NSFT total cost time is: 59.30s
Subband Calibration 的值也没出来。

小弟刚做射频，遇到难题，求大神指点。

首先你的雙工器有沒有調試收斂，不收斂的話高中低信道性能很容易差異大

感谢兄台。

调试双攻ANT端匹配

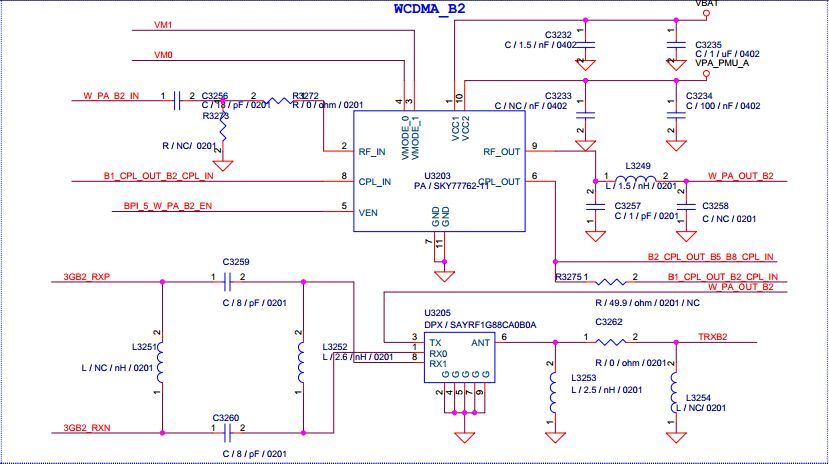

你这个原理图看上去应该没什么问题，MURATA的这个双工器参考ANT对地电感式3NH，实际测试一下高中低三个信道的包和功率，看看差异大不大。如果大，先调双工，如果调双工没反应再调功放输出匹配。

学习一下

可以使用META调整吗

调匹配吧，一般都是匹配引起的。
