cst仿真结果中的balance什么意思?

05-08

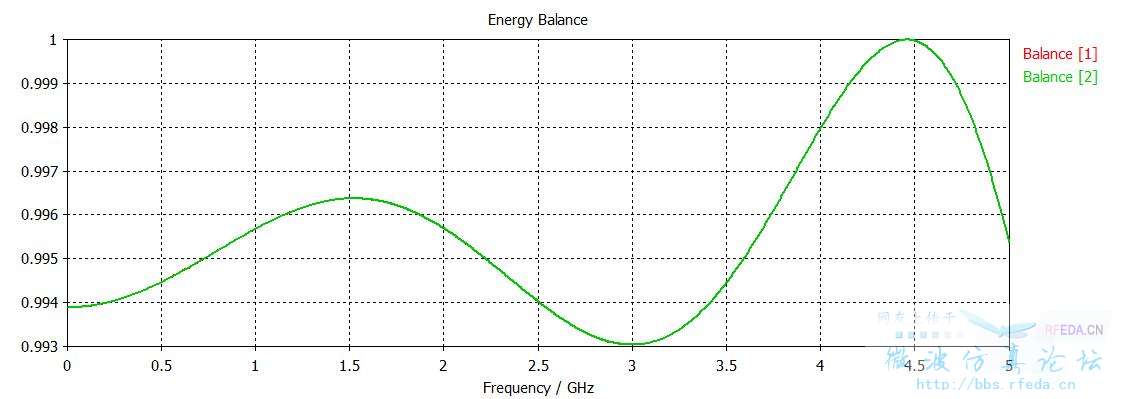

我仿真完结果中有关于一个balance的选项什么意思?


help中有,参考《Signals in Time Domain Simulations》

谢谢哈

我觉得数值上和linear s11是一样的。

这仿真设置到5G有意义吗?

那是因为S21很小或者你的就是单端口网络

我也一直不太清楚这个balance是个什么意思。

一直对这个参数忽视之,请高手解答!

看看帮助文件吧,里面说的很详细:
《Signals in Time Domain Simulations》

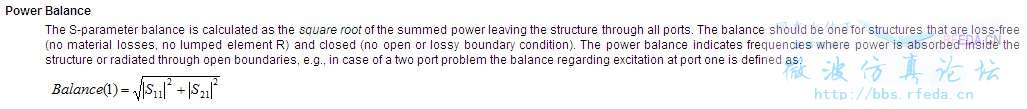

The S-parameter balance is calculated as the square root of the summed power leaving the structure through all ports. The balance should be one for structures that are loss-free (no material losses, no lumped element R) and closed (no open or lossy boundary condition). The power balance indicates frequencies where power is absorbed inside the structure or radiated through open boundaries,
