ADS 报错啊,求救
05-08
各位大大,使用ADS2008仿真微带滤波器,出现错误,帮我看看啊
Error detected by hpeesofsim during Nominal Optimization `Optim1'. OptimGoal/YieldSpec/DoeGoal did not find any relevant simulation points. Please check to insure any OptimGoal/YieldSpec/DoeGoal range contains at least one simulation point The OptimGoal/YieldSpec/DoeGoal device in question is: OptimGoal3

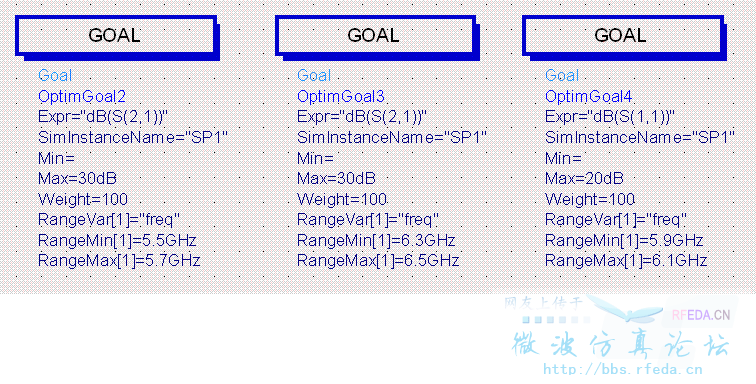

我的设置
----------------------------------
谢谢大家了菜鸟求助
Error detected by hpeesofsim during Nominal Optimization `Optim1'. OptimGoal/YieldSpec/DoeGoal did not find any relevant simulation points. Please check to insure any OptimGoal/YieldSpec/DoeGoal range contains at least one simulation point The OptimGoal/YieldSpec/DoeGoal device in question is: OptimGoal3
我的设置
----------------------------------
谢谢大家了菜鸟求助
[size=4]微带滤波器的指标为:通带频率5.96.1GHz,通带内波纹指数为0.1dB,阻带边频6 ± 0.3
GHz外衰减大于30dB
s21都应该是负的吧? Goal里的最大值改成-30dB
